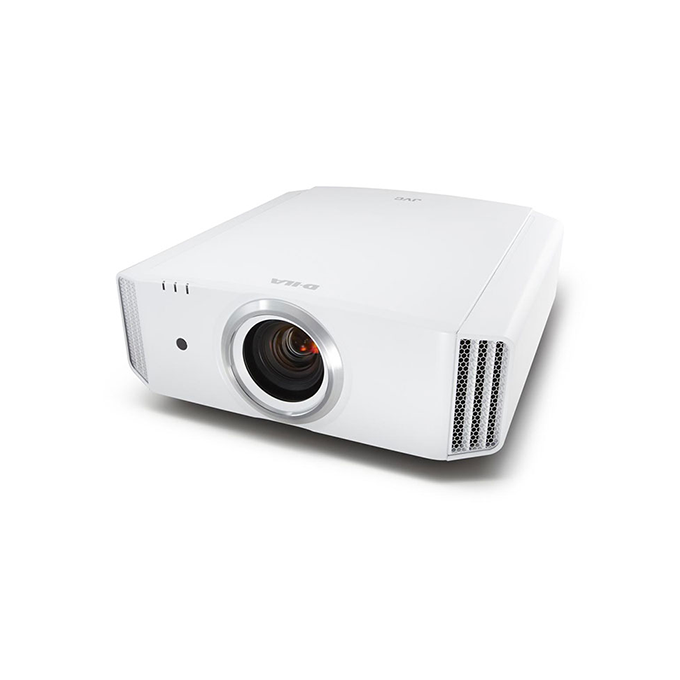

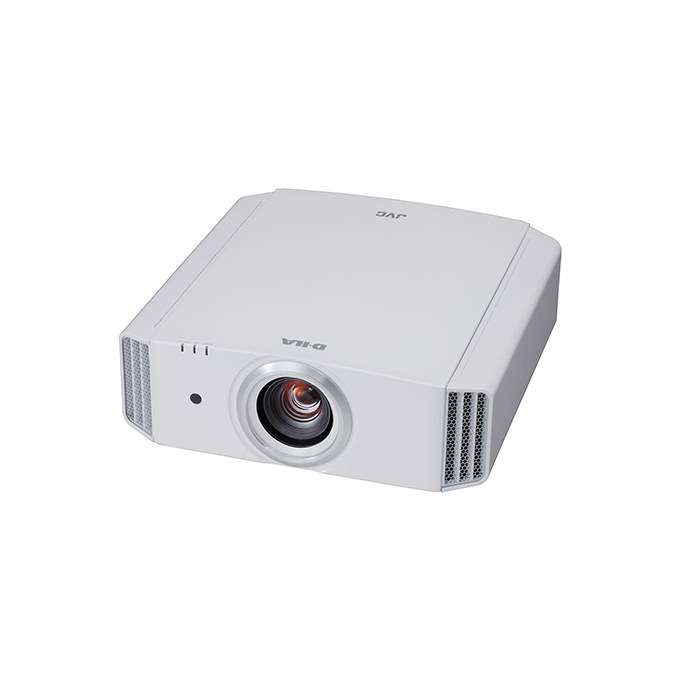

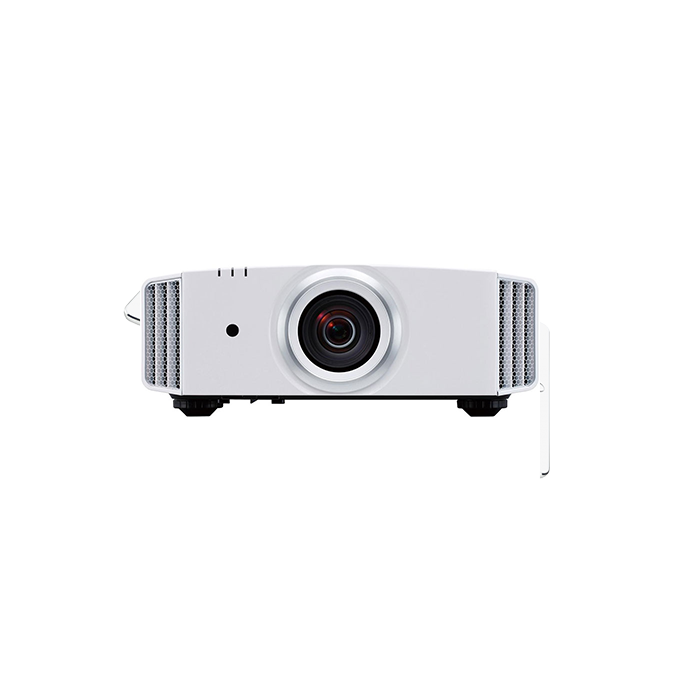

JVC DLA-X5000 Premium Home Entertainment Projector (White)

Product Description

Product details of JVC DLA-X5000 Premium Home Entertainment Projector (White)

Dynamic contrast ratio: 400,000:1
Native contrast ratio: 40,000:1
Brightness: 1,700 lm
Compatible with HDMI standard (4K60P 4:4:4) and HDCP 2.2
Available in 2 colours (black and white)

Display size (16:9)			Projection distance
Screen diagonal (inch)	W (mm)	H (mm)	Wide (m)	Tele (m)
60	1,328	747	1.78	3.66
70	1,549	872	2.09	4.28
80	1,771	996	2.40	4.89
90	1,992	1,121	2.70	5.51
100	2,214	1,245	3.01	6.13
110	2,435	1,370	3.31	6.75
120	2,656	1,494	3.62	7.36
130	2,878	1,619	3.92	7.98
140	3,099	1,743	4.23	8.60
150	3,320	1,868	4.53	9.22
160	3,542	1,992	4.84	9.84
170	3,763	2,117	5.14	10.45
180	3,984	2,241	5.45	11.07
190	4,206	2,366	5.75	11.68
200	4,427	2,490	6.06	12.30

• * Projection distances are design specifications, so there is ±5% variation.

Display size (2.35:1) * when 2.35:1 signal input			Projection distance
Screen diagonal (inch)	W (mm)	H (mm)	Wide (m)	Tele (m)
60	1402	597	1.95	3.91
70	1636	696	2.28	4.56
80	1870	796	2.60	5.21
90	2103	895	2.93	5.86
100	2337	995	3.26	6.51
110	2571	1094	3.58	7.16
120	2805	1193	3.91	7.81
130	3038	1293	4.23	8.47
140	3272	1392	4.56	9.12
150	3506	1492	4.88	9.77
160	3740	1591	5.21	10.42
170	3973	1691	5.53	11.07
180	4207	1790	5.86	11.72
190	4441	1890	6.19	12.37
200	4674	1989	6.51	13.02

• * Projection distances are design specifications, so there is ±5% variation.

		DLA-X9000	DLA-X7000	DLA-X5000
Device		0.7 inch Full HD D-ILA (1920 x 1080) x3
4K e-shift 4 Technology
Resolution		3840 x 2160*1
Lens		x2 Zoom & Focus: Motorised; f=21.4-42.8mm / F3.2-4
Lens Shift		+/-80% Vertical and +/-34% Horizontal (motorised)
Lens Cover				—
Projection Display Size		60 inch – 200 inch (diagonal)
Light Source Lamp		NSH 265W (lamp life: approx. 4500 hours when the lamp is in Low mode)
Brightness		1900 lm	1800 lm	1700 lm
Contrast Ratio	Dynamic	1,500,000:1	1,200,000:1	400,000:1
	Native	150,000:1	120,000:1	40,000:1
Input Terminal	HDMI	2 (3D/Deep Colour/HDCP 2.2)
Output Terminals	Trigger	1 (Mini jack , DC12V/100mA)
	3D Sync	1 (Mini DIN 3pin)
Control Terminals	RS-232C	1 (D-sub 9pin)
	LAN (RJ-45)	1
Video Input Signal Format	Digital	480p, 576p, 720p 60/50, 1080i 60/50, 1080p 60/50/24, 3840 x 2160p 60/50/30/25/24, 4096 x 2160p*2 60/50/30/25/24
PC Input Signal Format	HDMI	VGA/SVGA/XGA/WXGA/WXGA+/SXGA/WSXGA+
3D Format	Frame Packing	720p 60/50, 1080p 24
	Side-by-Side (half)	720p 60/50, 1080p 60/50/24, 1080i 60/50
	Top & Bottom	720p 60/50, 1080p 24
Power Consumption		380 W (Normal standby: 1.5 W, Eco-mode Standby: 0.4 W)
Fan Noise		21 dB (When the lamp is in Low mode)
Power Requirement		AC 100-240 V, 50/60 Hz
Dimensions (W x H x D)		455 mm x 179 mm x 472 mm
Weight (net)		15.6 kg	15.6 kg	15.4 kg

---

1. *1 Resolution is 1920×1080 in 3D mode.
2. *2 When the video input signal is at 4096 x 2160p, data above 3840 is not displayed equally on the left and right.
3. D-ILA is a registered trademark of JVCKENWOOD Corporation.
4. Control4 and the Control4 logo are registered trademarks of Control4 Corporation.
5. THX and THX logo are trademarks of THX Ltd., which may be registered in some jurisdictions.
6. ISF is a registered trademark of Imaging Science Foundation, Inc.
7. HDMI, the HDMI logo and High-Definition Multimedia Interface are registered trademarks of HDMI Licensing LLC.
8. Please be aware that, because the D-ILA device is manufactured using highly advanced technologies, 0.01% or fewer of the pixels may be non-performing (always on or off).
9. The projector is equipped with an ultra-high pressure mercury lamp, which may break, emitting a loud noise, when it is subjected to shock or after it has been used for some length of time.
10. Please note that, depending on how the projector is used, there can be considerable difference between individual lamps regarding how many hours they will operate before requiring replacement.
11. An additional payment is required for installation of the projector or a new lamp, if necessary.
12. All other brand or product names may be trademarks and/or registered trademarks of their respective owners.
13. All pictures on this website are simulated.
14. Design and specifications are subject to change without notice.
15. Any rights not expressly granted herein are reserved.
